Temperature Sensor Assemblies Exe CSA US

The Hazardous Area Sensor CSA/US Ex e is specifically designed for North American hazardous locations, offering robust safety features certified under CSA/US standards. It provides reliable and precise temperature monitoring in explosive atmospheres, ideal for industries requiring stringent safety measures.

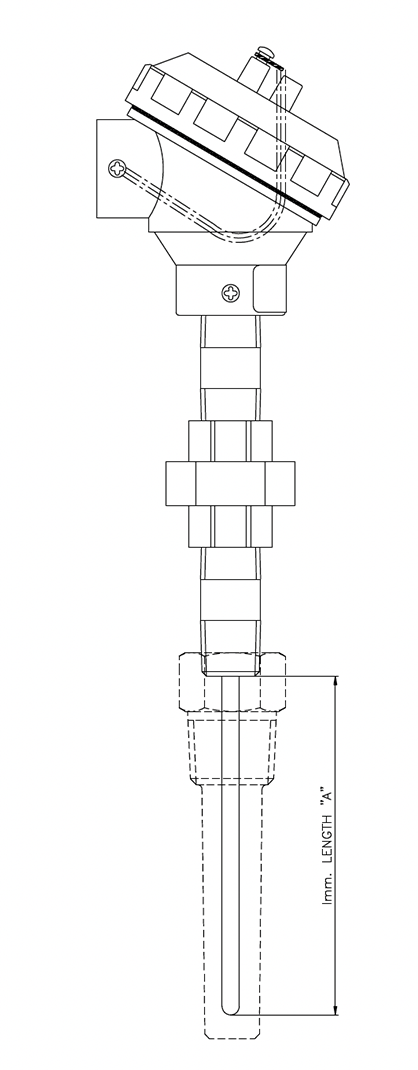

Series XPS-10.000

CONNECTION HEAD

• Type: weatherproof with screw on cover
• Material: cast-aluminium
• Conduit entry thread: 3/4″ NPT (standard), 1/2″ NPT, M20x1,5

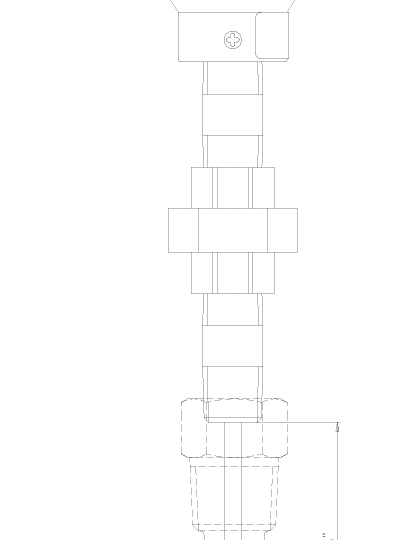

EXTENSION

• Type: nipple-union-nipple
• Material: stainless steel
• Length: approx. 160 mm; other lengths optional
• Process connection: 1/2″ NPT, male thread

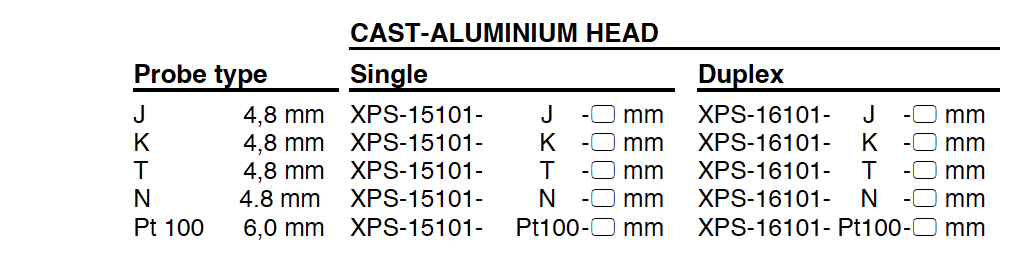

INSERT

• Type: approved thermocouple or resistance insert A/101r
• Insertion length below nipple: to be specified; replace box behind ordering code
• Insert length: A + 216 mm

THERMOWELL

Type: any type of thermowell to be specified

APPROVAL

• Classification: Class I, Zone 1, AExe IIC T6…T1 Ex e IIC T6…T1
• Certificate number: 2462384
• Protection category: ‘e’ increased safety
• Explosion group: II
• Temperature class: T6-T1
• Applicable standards: CAN/CSA-E60079-11-02 (R2006) ANSI/ISA- 60079-11 (2011) CAN/CSA E60079-15-02 (R2006) ANSI/ISA-60079-15 (2009) UL Standard 61010-1 2nd edition, CAN/CSAC22.2 No.61010-1-04 Also available ATEX, IEC, and KTL

For inserts only see A/101r
The cable gland shall be a certified model and is not part of the approval

Applications:

Suitable for hazardous areas in North America, ensuring safety in environments requiring certified explosion-proof components.

Datasheet

A101-1-CSAUs Ex e 2023-06-30
