Temperature Sensor Assemblies Ex eb IECEx

Series XPS-10.000

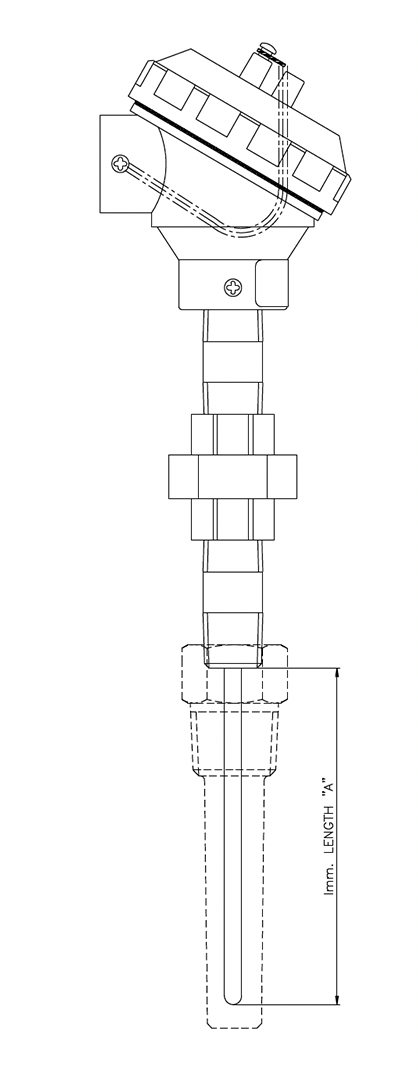

CONNECTION HEAD

• Type: weatherproof with screw on cover
• Material: cast-aluminium
• Conduit entry thread: 3/4″ NPT (standard), 1/2″ NPT, M20x1,5

EXTENSION

• Type: nipple-union-nipple
• Material: stainless steel
• Length: approx. 160 mm; other lengths optional
• Process connection: 1/2″ NPT, male thread

INSERT

• Type: approved thermocouple or resistance insert A/101r

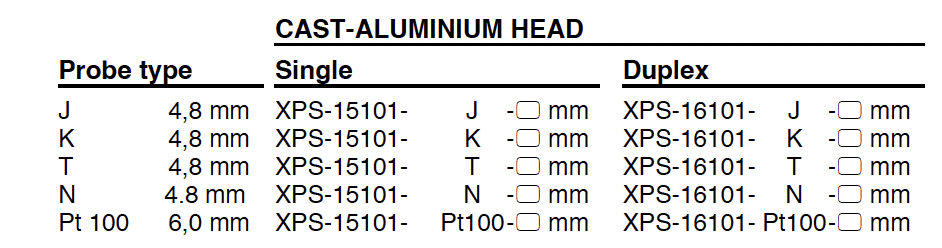

• Insertion length below nipple: to be specified; replace box behind ordering code
• Insert length: A + 216 mm

THERMOWELL

• Type: any type of thermowell to be specified

APPROVAL

• Classification: XPS1 : Ex eb IIC T6…T1 Gb
• Certificate number: IECEx DEK 11.0002X
• Protection category: ‘eb’ increased safety
• Temperature class: T6…T1
• Applicable standards: IEC 60079-0:2017, IEC 60079-7: 2017 Also available ATEX, CSA/us, and KTL

Inserts only see page A/101r
The cable gland shall be a certified model and is not part of the approval.

Applications:

Suitable for oil, gas, chemical processing where explosive atmospheres are present

Datasheet

A101-1-IECEx Ex eb 2023-06-30
